Dynamic Map Elements

The colors for assets icons are assigned automatically from a predefined palette.

The first asset takes on the left-most color, the second asset takes on the next color in the order, and so on. If there are more assets than colors in the palette, the assets will take on lighter or darker variants of the colors in the palette. No two asset icons on the map will have the exact same color.

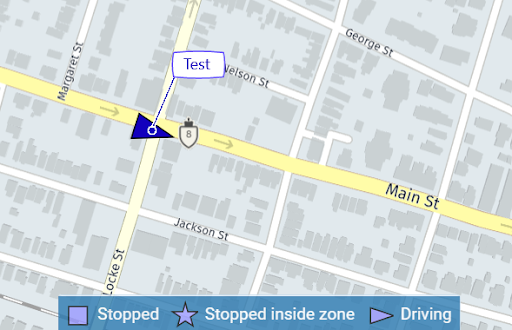

Moving assets have an additional glow effect to differentiate them from stopped assets. EVs display the vehicle’s state of charge beside the vehicle name regardless of movement.

When an asset is classified as not communicating, its color is set to gray. An asset is considered to be not communicating if one of the following conditions is true:

1. The installed Telematics Device is a legacy device and has not communicated for a minimum of 72 hours.
2. The installed Telematics Device is not a legacy device and:

1. • The most recent communication indicates that the asset is moving and the last contact was more than 10 minutes ago; or
   • The most recent communication indicates that the asset has stopped and the last contact was more than 24 hours ago.
